HD PVR 2 model 1507 Overview
HD PVR 2 model 1507: your personal high definition video recorder!
HD PVR 2 records video at up to 1080p from a DVR or satellite or cable TV set top box or a video game console. HD PVR 2 can record from either HDMI (without HDCP protection) or Component Video at up to 1080p.
You can record TV programs from a DVR and free up space on the DVR for more recordings. Create a library of your favorite TV programs.
Or use the included WinTV v8 application to schedule TV recordings directly from a cable TV or satellite set top box.
Amazing HD audio and video quality
HD PVR 2 contains a studio quality video encoder, and records at resolutions up to 1080P30.
The H.264 format is used by Blu-ray discs and exceeds other video compression standards in quality and disk space consumption, providing a crisp image and amazing digital sound. H.264 uses 1/3 the disk space compared with the popular MPEG-2 format.
And with HD PVR 2’s S/PDIF optical audio input, your audio will be as amazing as the video!
Make your own HD movie library from cable or satellite TV
Offload your cable or satellite DVR box with the HD PVR 2 in full HD. Create a library of your favorite high definition TV programs.
The HD PVR 2 supports both HDMI and Component video. For best results, your cable or satellite TV box should have Component video out since sometimes (but not always), the boxes put HDCP copy protection on the HDMI cable. But component video is never copy protected.
To tell if your cable box has component video connectors, look on the back of the box for Red/Green/Blue connectors. These are often marked 'YPrPb'. Here is what a typical set top box with component video connectors will look like. The component video cables are in 6 and the Left/Right audio connectors are 8.
Record your favorite cable or satellite TV programs in HD. Use the included IR blaster to control the channel changing on your set top box
Connect HD PVR to your satellite or cable TV set top box via the HD component cables (supplied). With the TV scheduler and IR blaster, HD PVR can change the channel on the set top box and record the selected program. Hauppauge’s TV Scheduler provides a easy way to schedule your TV recordings. Create a schedule of weekly or once only recordings, and HD PVR will record them automatically! Find your favorite movie, sports event or show, schedule it and let HD PVR 2 take over!
You can also record your video game play in HD. Upload to YouTube and share with your friends! Stream your videos, too!
Record your best gaming moves without slowing down your PC. The video compression is done inside HD PVR 2 so you can record your PC game play in HD without slowing down your PC. You can also record Xbox One, Xbox 360, PS3, PS4 and Wii U game play. And HD PVR 2’s HD video passthrough means you can record and watch your game play at the same time, with no delay! HD PVR 2 captures videos in a format which is perfect for uploading to YouTube.
Personal Logo application
The HD PVR 2 and Colossus 2 Logo Inserter puts a graphic in your recordings or video streams. It does this automatically, branding your videos and streams with your logo. In the TV industry, an on-screen logo is called a 'digital onscreen graphic' or 'TV bug', and you can often see this in the lower right hand corner of news programs on TV. The Hauppauge Personal Logo application uses the Logo Inserter, and is part of the Hauppauge Capture application (it can be found in the Settings tab). There is also a standalone version which is installed with the HD PVR 2 Installation package.
Here is a short test video we made using the logo inserted by the Personal Logo application. https://www.youtube.com/watch?v=0T1phlzaz28
Some tips on using the Personal Logo application
- The logo must be less than 1200pixels x 550pixels and be a GIF, BMP or PNG format. PNG files are recommended since they can be transparent. When creating a PNG file, create 24-bit transparent logos.
- In Hauppauge Capture, click the Settings tab and then click 'Enable Personal Logo'. Then click 'Browse' and find your logo. Once you open the logo, you can position it on the screen by dragging it around with your mouse. Then click the 'Apply' button to add your logo.
- If you change the record resolution, the HD PVR 2 record application will calculate where to reposition it to keep it in the same spot.
- You can adjust the transparency by using the Alpha slide bar. All the way to the right makes the logo fully opaque, while moving it to the middle makes the logo semi-transparent.
- The settings are "sticky". Once set, they will be applied to all future recordings (unless you re-run the Personal logo program and make changes).

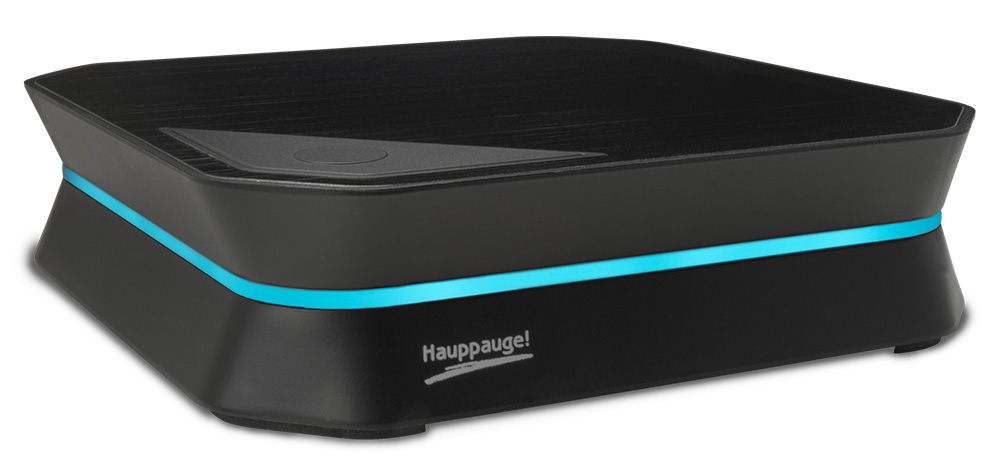

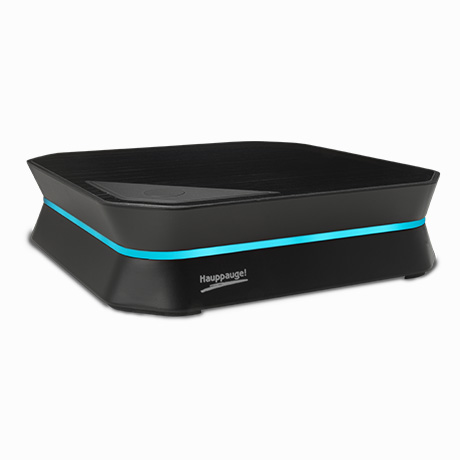

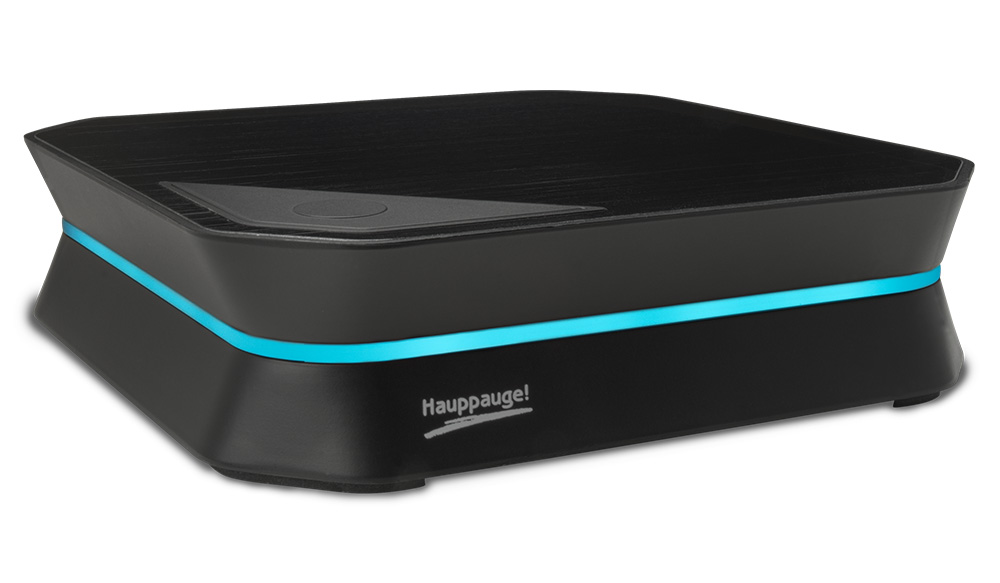

HD PVR 2 High Definition Video Recorder for Cable or Satellite TV Set Top Boxes
Record your TV programs in HD from a cable TV, DVR or satellite TV box
Offload your DVR and free up DVR disk space or create a library of your favorite TV programs!
Now with optical audio plus IR blaster to control your cable or satellite set top box
Includes our no delay pass through, so you can watch TV from your cable or satellite box while you record in HD!
Now includes StreamEez, so you can live stream. Create a Twitch or YouTube channel with StreamEez!

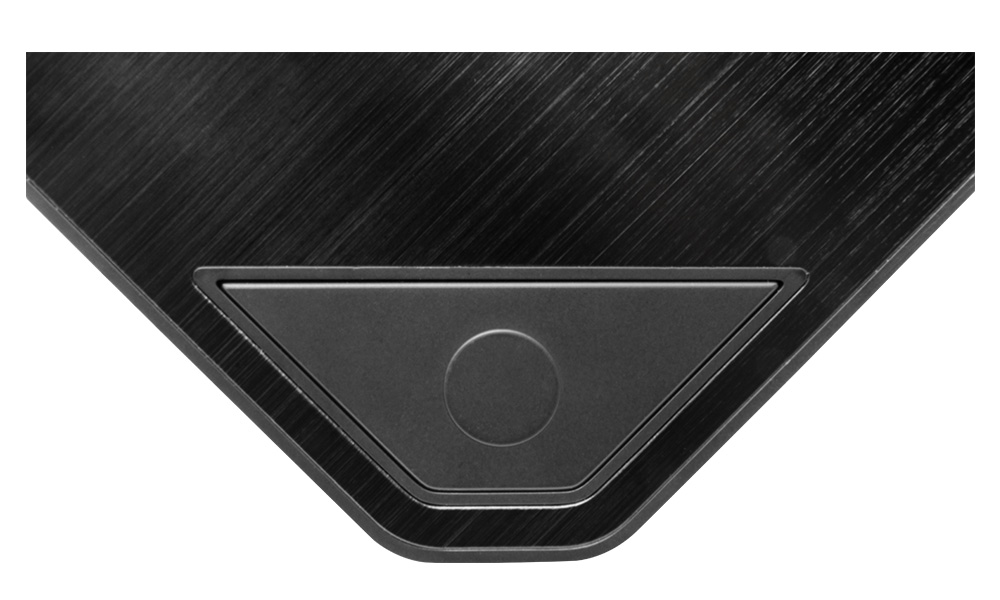

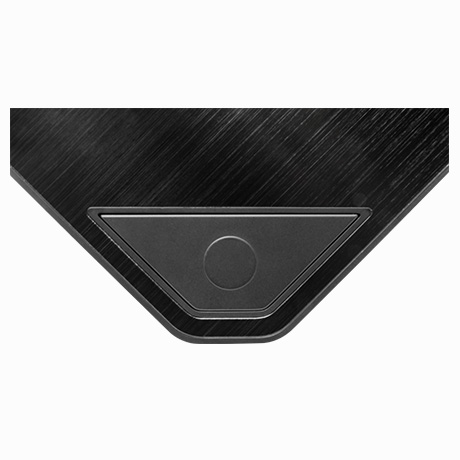

Includes a built-in Record button, so you can start and stop your recordings without having to be at your PC. Plus with our Personal Logo inserter, you can add your own logo to your recordings and video streams.
Note: Some cable and satellite boxes do not allow recording from the HDMI port on the box. The HD PVR 2 model 1507 can record HD video from either HDMI or Component video using the supplied A/V adapter cable. If you have one of these boxes, you will need to use the Component video connectors on the back of your box. Component video connectors are normally Red/Green/Blue connectors and are sometimes marked 'YPrPb'. Please check with your cable TV or satellite TV provider for the availability of Component video connectors on your box.
Both the WinTV and Hauppauge Capture applications can be set for either HDMI or Component video sources.

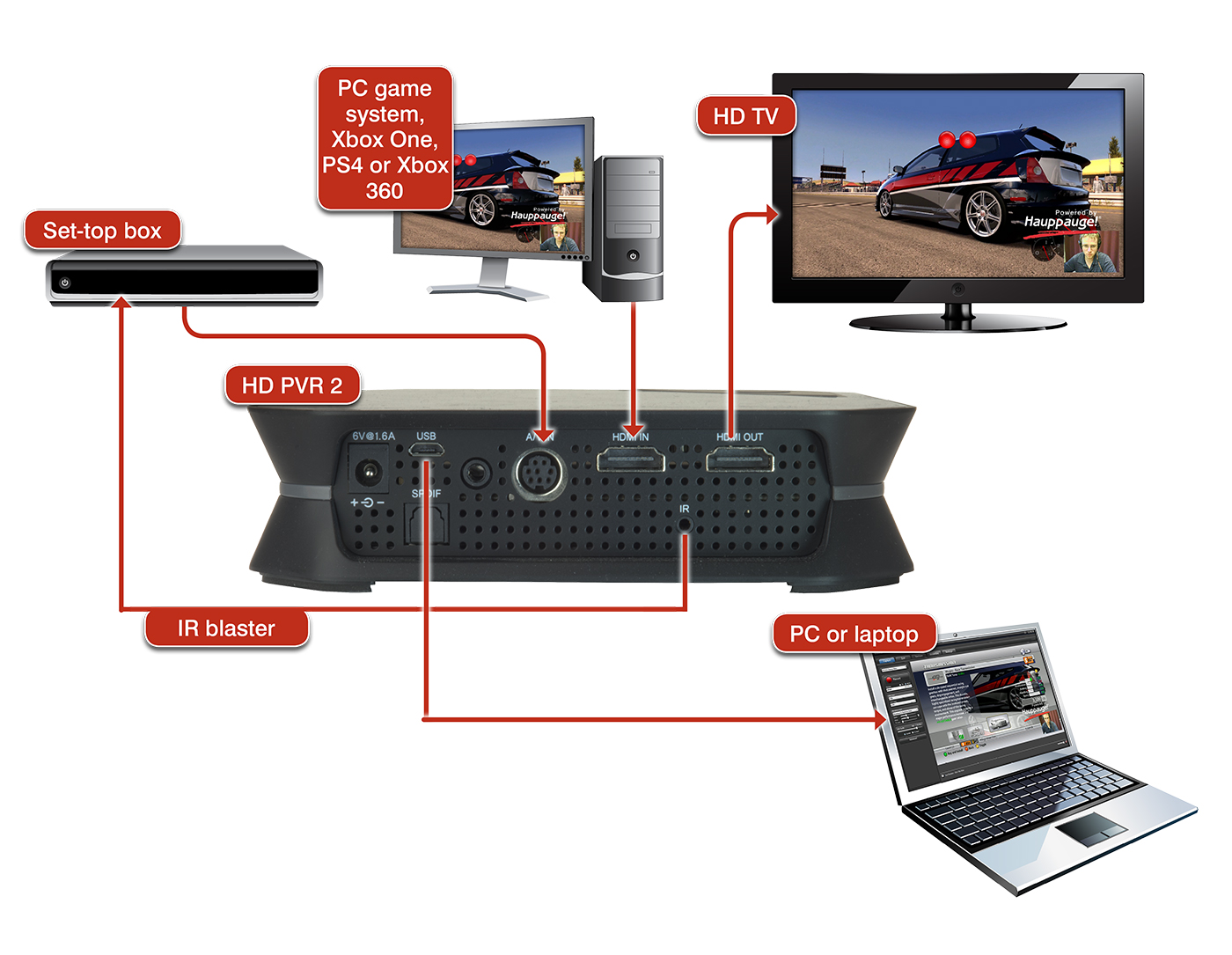

HD PVR 2 model 1507 connection diagrams
HD PVR 2 has “no delay passthrough” so you can play your video game while recording. To use the no delay pass through, simply connect HD PVR 2 between your game console and your HD TV set. HDMI output is provided to make it easy to connect to your TV monitor.
For recording HD TV programs from a cable or satellite TV box, HD PVR 2 includes an IR blaster which can change the channels on your set top box. Use the included WinTV application to schedule recordings of your favorite TV programs and the IR blaster will change to the correct channel for the recording.
HD PVR 2 diagram
Model numbers
Model 01507: HD PVR 2 with English manual
Bundled software applications
- Hauppauge Capture, with these features:
- Video capture for recording HD video
- Trim and combine your videos
- Upload videos to YouTube
- Hauppauge SteamEez software, to stream your game play to Twitch or YouTube
- Hauppauge’s Personal Logo inserter, to burn your logo into your recordings and video streams
- WinTV v8, with TV Scheduler and IR blaster so you can record TV from a cable or satellite box

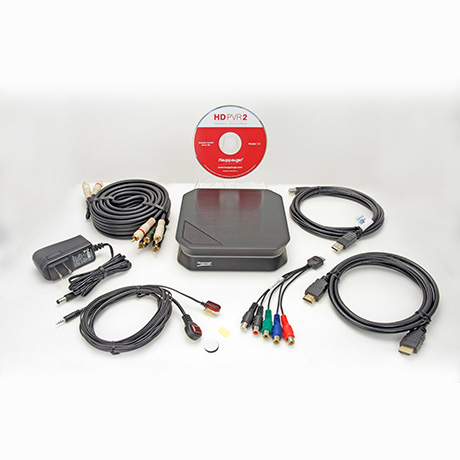

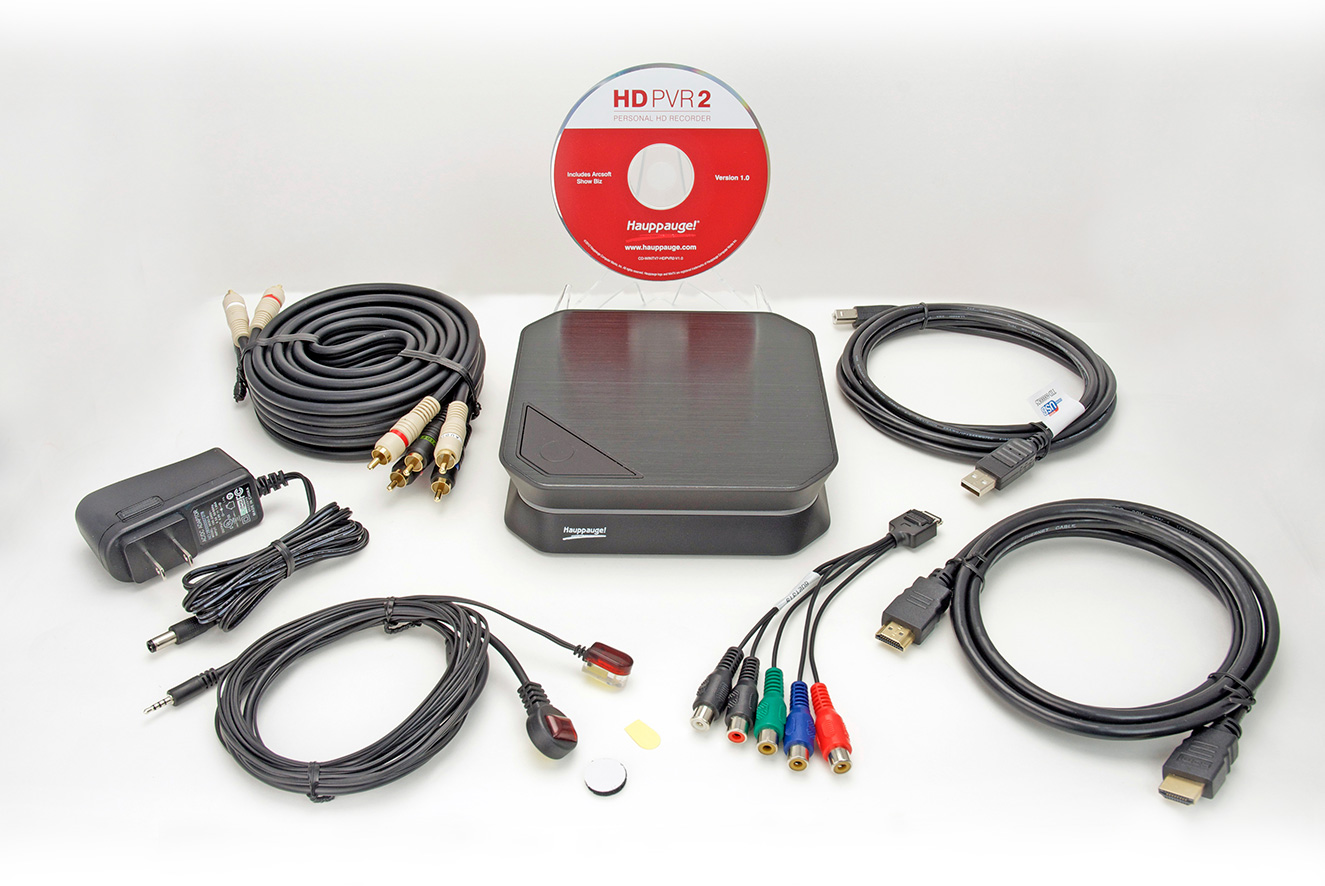

Included in this package
- HD PVR 2 high definition H.264 personal video recorder, USB 2.0
- 6V 1.6 amp power supply
- USB cable - 9 ft.
- 2 meter HDMI cable to connect to your TV monitor
- 2 meter IR blaster cable
- Hauppauge A/V adapter cable with Component video connectors, to connect to your cable or satellite box
- Hauppauge Capture (download)
- WinTV v8.5 application (download with Activation Code included)
- Quick installation guide
Note: HD PVR 2 will not record video from HDMI with HDCP copy protection. If you are recording from a cable or satellite TV box, we have included a set of Component video cables to connect to your box.
Note: HD PVR 2 model 1507 comes supplied with either a green or blue LED record indicator. In all other respects, all versions of the HD PVR 2 model 1507 are the same.
HD PVR 2 hardware specs
- Hardware encoder
- Studio quality video encoder, with 70 frame GOP size for the best recording quality
- H.264 AVCHD high definition video encoder, with record resolution to 1080p30
Recording datarate: from 1 to 13.5 Mbits/sec (CBR) or up to 21Mbits/sec (VBR)
Recording video formats: AVCHD (.TS and .M2TS) plus .MP4
- No delay HDMI passthrough:
- HDMI in to HDMI out - up to 1080p60
- Component Video in to HDMI out - up to 1080p60

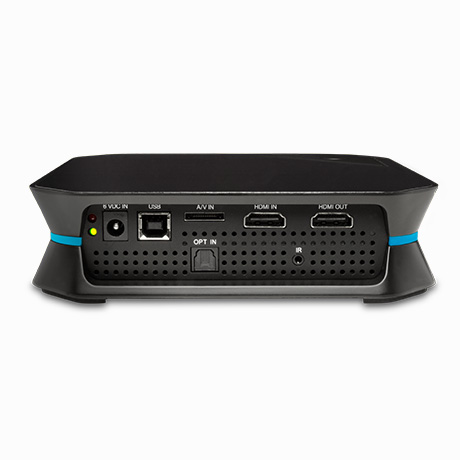

- Input/output connections

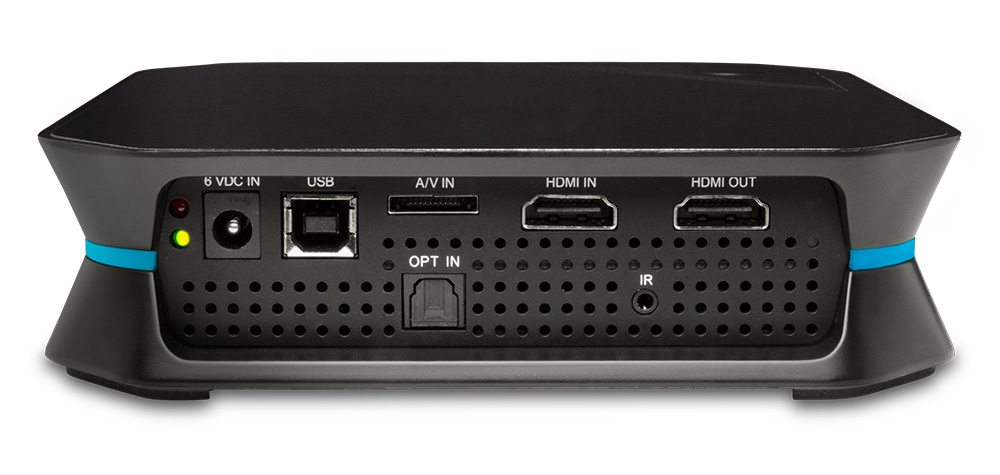

- HDMI in, from HDMI sources without HDCP (some cable and satellite boxes)
- Component video in, with stereo audio (sometimes marked 'YPrPb' on cable or satellite boxes)
- S-Video and composite video in, with stereo audio (optional cable not supplied)
- HDMI passthrough
- Size: 6 in wide x 6 in deep x 1.5 in high
- Power: 6V at 1.6 amps
- Weight: .75lb / .34 kg / 12 oz
- Recording formats
- 1080p60p (recorded as 1080p30)
- 1080p50p (recorded as 1080p25)
- 1080i60
- 1080i50
- 720p60
- 720p50
- 480p60
- 480i60
- 576p50
- 576i50
System Requirements
- Laptop or desktop PC with 3.0 GHz single core or 2.0 GHz multi-core processor
- Microsoft® Windows® 10, 8, 7 or Vista (32 or 64-bit)
- TV set with HDMI input(optional for preview)
- 1 GB memory recommended
- Internet connection (for Hauppauge Capture download)
Note: HD PVR 2 will not record video from HDMI with HDCP copy protection. If you are recording PS3 gameplay, use the included PS3 component video gaming cable.

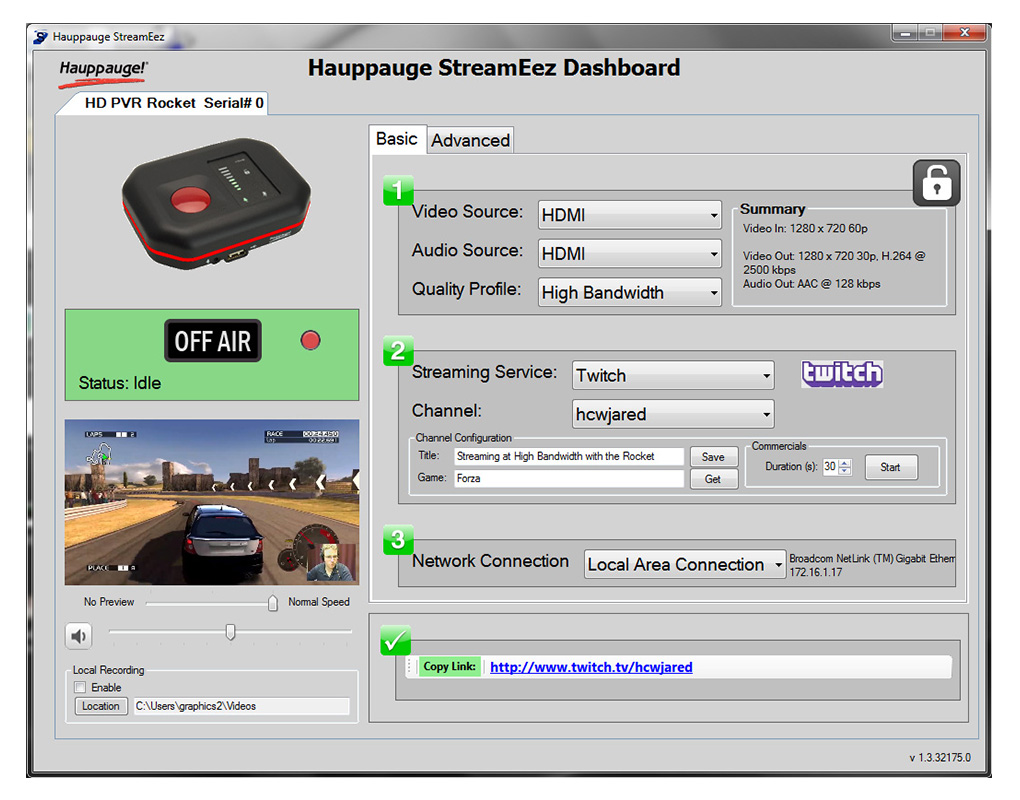

StreamEez: stream your video gameplay with Twitch and YouTube
File name: streameezsetup_1_4_35054.exe
Date: Feb 24, 2017
File size: 151 MB
New features in this version
- For Twitch users: add your channel name and pause for a commercial break
- For YouTube users: fixes problems with YouTube recording of video streams
- Adds an automatic re-connect mode, to re-establish streaming when your Internet connection is momentarily lost
- Adds streaming support for the HD PVR Rocket
To install this version of StreamEez:
- Click on the download link. You will be given an option to Run or Save the file. Click Save to save the file in your Download folder.
- Run this file. It will install the StreamEez-Pro application plus the Windows driver.
- When finished running the update, you will be ask to restart your PC. Restart your PC
- While the PC is restarting, power cycle your StreamEez device to load the new firmware (remove power from the unit for a few seconds and then plug it back in).
- When your PC has rebooted, double click on the StreamEez-Pro icon.
- Under Source (upper left hand corner), make sure it is set to your Hauppauge device.
- If your cables are connected, you should now be able to stream with Twitch or YouTube.
Some tips on using StreamEez
- Step 1
- Before you change any settings, make sure you are Off Air and the Lock button is unlocked (just click on the button to unlock).
- Choose your Video Source. Xbox 360 normally uses HDMI while PS3 normally uses Component.
- Choose your Audio Source. Xbox 360 normally uses HDMI while PS3 normally uses Line.
- In Quality Profile, the default is High Bandwidth. Depending upon the uplink speed of your Internet service, you may need to change to Medium or Low bandwidth. A laggy or jerky stream means your uplink speed is too low and you need to choose a different Quality Profile.
- If you would like to preview your video in StreamEez, make sure the slider under the preview window is set to 'Normal speed'. You should now see your video in the preview window.
- Step 2
- Then choose your Stream Service, either Twitch or YouTube. ( You must have an account setup with the stream service you wish to use)
- In Channel, select Login. Enter your Login and Password. You will see a message "Gathering credentials" as we check your user name and password.
- Once your user name and password are confirmed, you will see the URL of your stream in the box "Copy stream link". If you click on the words "Copy stream link", the URL will be copied to the clip board.
- Step 3
- Leave the Network Connection as the default
- To start streaming
- To start streaming, click the red dot next to "Off Air." The indicator should be changed to "On Air" and you will now be streaming live over the Internet!
- Once you are On Air, you cannot change any settings. You need to stop streaming by clicking the green dot next to On Air to stop the stream.
YouTube streaming with StreamEez
How to use StreamEez
Third Party applications for HD PVR 2
HDPVRCapture for the Mac
Use HD PVR 2 with a Mac.
Capture4ME
Capture4ME is compatible with HD PVR 2. It is an easy-to-use application that focuses on the core goal of capturing video. The Capture4ME app has the ability to trim the beginning or end of a recording, and also an 'Upload to YouTube' function for those that want to share their videos online.
What Operating Systems are supported by the HD PVR 2?
Microsoft Windows 8, 7 or Vista (32 or 64-bit), or Windows XP with Service Pack 2 or later.
Do I need a PC to use HD PVR 2?
Yes, a PC or laptop is required to use HD PVR 2. The PC is used to both run the HD PVR 2 application plus is the place where HD PVR 2 recordings are stored. HD PVR 2 does not have any internal disk storage.
HD PVR 2 connects to a PC or laptop computer through a USB 2.0 port. The HD PVR 2 recordings are stored on the PC's disk drive.
If you have a Mac, there is an application from HDPVRCapture which can be used. Go to http://www.hdpvrcapture.com for more information.
I use the HD PVR 2 Gaming Edition. I was wondering how do record my game chat with game audio?
With the new Hauppauge Capture application, you can plug your microphone into the 'mic input' on your PC and mix your game play audio with microphone audio. There are seperate volume adjustments for game play and microphone audio.
http://www.hauppauge.com/capture
You can also use an external mixer to mix your chat with game play. Here is the link to the tutorial on connecting a microphone to the HD PVR 2.
http://www.youtube.com/watch?v=IhP_Pnw-19YYou will need an audio mixer to 'mix in' your game audio. Here is the one we use (but there are lots others):
http://www.mcmelectronics.com/product/DISTRIBUTED-BY-MCM-TC-43-/50-6182HERE IS HOW TO CONNECT AN MICROPHONE WHEN USING AN XBOX
Here are the connections:Connect the Xbox to the HD PVR 2 with an HDMI cable. This cable will be used for video only.
For audio, you need to use an 'Xbox audio adapter' to bring the Audio (stereo) from your Xbox to the Mixer. Here is this adapter:
http://www.amazon.com/Microsoft-Audio-Adaptor-Xbox-360-Windows/dp/B004S5EH6Q/ref=sr_1_8
Now you connect the Microphone into the Mixer. There is usually a jack on the mixer marked 'mic' or 'mic in'.
The stereo output of the Mixer goes to the audio connectors on the Hauppauge AV adapter, and the Hauppauge AV adapter plugs into the back of HD PVR 2 in the 'AV in' connector.Finally, in Showbiz Capture, you set the Video input to HDMI BUT THE AUDIO INPUT NEEDS TO BE SET TO "RCA (STEREO)". This is the key thing which needs to be done. And then you connect to your TV set with HDMI as normal
Can I connect the HD PVR 2 passthrough cable to a standard TV?
The HDMI output of the HD PVR 2 can only be used on an TV set with HDMI connectors. HDMI TV sets normally display 720p or 1080p video.
Can I use HD PVR 2 with a Mac?
If you buy the HD PVR 2 Gaming Edition Plus, it comes with a free copy of HDPVRCapture for the Mac.
If you have an HD PVR 2 or an HD PVR 2 Gaming Edition, you can buy HDPVRCapture separately. For more information, please go to:
www.hdpvrcapture.com.System Requirements
Windows 8, 7, Vista and Windows XP with service pack 3. Mac support from HDPVRCapture.com
You can record HD PVR 2 video on pretty much any PC. Older, slow, laptop or desktop PCs can be used to record HD PVR 2 video. Preview video on older PCs and laptops might be jerky and laggy but your recordings will be fine.
But when you playback an HD PVR 2 recording on your PC screen, you need a fast CPU and at least 256MB of graphics memory. Here is what we recommend for video playback (minimum):
- Dual core CPU 2.0Ghz or faster
- Graphics with 256MB memory (or greater)
- Sound card
- USB 2.0 Port
Can I record composite video from my old PS2 or Wii?
Yes. Connect the yellow cable from your Wii to the Blue connector on the Hauppauge AV cable. Then connect the red and white audio cables from your Wii to the red and white connectors on the Hauppauge AV cable. Then, in Showbiz or Hauppauge Capture, select Composite under Video input and Line In under Audio input.
Here is a video which shows you how to use the HD PVR 2 with an Nintendo 64: http://www.youtube.com/watch?v=Mb541Ww09jg
Would you like to support the HD PVR 2 in your own Windows application?
You can access the HD PVR 2 in your DirectShow application. Simply build a Directshow graph and add the crossbar, capture and encoder filters. Then connect them all up, and it'll output a transport stream containing H.264 and AAC.
You can then demultiplex it or do whatever you want to it. And you can use standard Microsoft API like IVideoEncoder to control the bitrate. Here is a link to the Graphedit graph.
Can I use the HD PVR 2 with Linux?
Currently, there are no drivers available for Linux.
Can I use HD PVR 2 with the Hauppauge WinTV v7 application?
Yes. If you use WinTV v7.2 with the HD PVR 2, you can record videos plus use Extend for live streaming.
Can I record high definition TV from a Cable TV or Satellite box?
Yes. By connecting the Component video output from your high definition cable TV or satellite TV set top box to the Component video inputs of the HD PVR 2, you will be able to record the TV programs coming from your set top box to the hard disk. Component video connections are normally the Red/Green/Blue connectors on the back of a set top box. Sometimes they are also called YPrPb or YCrCb connectors.
The HD PVR 2 model 1512 comes with the cables to connect to your satellite or cable TV set top box.
What type of recordings can I make with the HD PVR 2?
HD PVR 2 encodes in real time directly to the hard disk in an H.264 format. There are three formats which you can choose when recording a video:
- .MP4 which is compatible with many video editors plus playback on the XBox360. MP4 is the preferred format for Sony Vegas. Apple iMovie version 9.0.4 can edit HD PVR 2 MP4 files.
- .TS which is a generic 'transport stream' compatible with many digital media players
All record file types can be used to burn AVCHD Blu-ray compatible discs but you will need to supply your own disc burning application.
What type of audio encoding is made with the HD PVR 2?
There are two ways of bringing audio into HD PVR 2: through the Line In (RCA) stereo audio jacks on the A/V connector or through the HDMI connector. When bringing audio in through the stereo jacks, audio is recorded as AAC. When bringing audio in through the HDMI connector, the audio is also recorded in the AAC format.
DTS audio is currently not supported.
MP4 format recordings are recorded using AAC.
If you have the HD PVR 2 model 1512 or the HD PVR 2 Gaming Edition Plus and are bringing in 5.1 channel audio from either HDMI or optical audio, your recordings will be made with 5.1 channel AC3 audio.
Can I output files I've recorded with my HD PVR 2 or other content from my PC back to an external TV monitor through the HDMI outputs on the HD PVR 2?
No, the HD PVR 2 itself does not have the ability to play back recorded videos to an external monitor. To playback recorded videos, you will need to connect your laptop or PC to your TV set.
The HDMI video output on HD PVR 2 acts as a pass through for live video streaming from your video source through the HD PVR 2 back to your TV monitor. The power of the HD PVR must remain in the on position in order to pass the video through to the external TV.
If I record my game play, can I uploaded it to YouTube?
Yes. Recordings made with HD PVR 2 are in a format which can be immediately uploaded to YouTube without conversion. ShowBiz records from HD PVR 2 in an H.264 form. ShowBiz Edit allows you to trim your videos very quickly without the need to re-encode. ShowBiz "Upload to YouTube" saves your login settings and allows you to upload your videos.
When I upload videos to YouTube using Showbiz, I do not get an HD option for playback
In Showbiz, you have to set the default resolution to at least 720P when uploading to YouTube in HD. This is done by going to Options; Preferences; Other and selecting the desired YouTube resolution.
Can my PC go into hibernate or sleep mode when using HD PVR 2?
The current driver for HD PVR 2 does not allow your PC to go into Hibernate or Standby mode when it is either recording or previewing video.
My PS3 is not selecting Component video out, and I see a black screen in Showbiz. How can I fix this?
This happens if you connected your PS3 using HDMI and now want to use Component video so you can record with HD PVR 2.
To fix, you need to reset the video settings on your PS3. To do this:
- Make sure you have the HDMI cable disconnected on your PS3
- Then push the PS3 power button on the front of the PS3. You should see the light go Red. This means your PS3 is turned off.
- Then hold down the PS3's power button until you hear two beeps (one beep, then about 5 seconds and a second beep).
Your PS3 should now be set to Component video out and you should see video in the preview window in Showbiz Capture.When opening the Showbiz Capture, I see a Channel button. Why?
If you have a TV tuner card installed, Showbiz Capture may attach to this or any other capture device installed. If you see a Channel button on the Capture Module window go to the Source drop down menu at the top and select the Hauppauge HD PVR 2 Capture Device.
Video in ShowBiz preview window has incorrect colors?
Most of the time this is caused by either one of the Component video connectors is not connected. For example, if the Red connector is not connected correctly, your video picture will look green.
Also try updating to the latest drivers supplied by your graphics card manufacturer.I see a change in brightness every few seconds in Hauppauge Capture and Showbiz while recording, streaming or playing back my video recordings. But my recordings are fine. What is going on?
If you are running an AMD graphics card in the PC which the HD PVR 2 is connected to, you may experience a slight change in brightness every few seconds while in the preview or edit screens. This is due to an issue with hardware acceleration that we have seen in some AMD drivers. This shift does not affect recordings and typically can be eliminated by either changing drivers for the graphics card or by disabling Hardware acceleration.
Video is jerky or broken up while capturing, yet my recordings are perfect. Why?
This is caused by either a slow processor in your laptop or desktop PC, or the display adapter is having a problem. Make sure your video card meets the minimum requirements. Also try updating to the latest drivers supplied by the manufacturer.
In September 2012, there was a problem with the ATI graphics driver which would cause jerky video or freezing of the video screen. This should be fixed with an update from ATI on their graphics drivers.
I get a black screen in the ShowBiz Capture window when using Component video from a cable TV set top box.
Some set top boxes will disable or turn off the component output if the HDMI or DVI output is being used. Check to see how you have your Television connected to your set top box. You might need to disconnect the HDMI connector on your set top box when you want to record TV programs.
Audio pass through does not work
In order for the audio pass through to operate, you need to configure the settings in the Showbiz application. In Showbiz, click on Capture. Make sure Source is Hauppauge Siena Video Capture. Then click the Audio input pulldown from the drop down menu ( RCA, HDMI ). Once configured, the HD PVR 2 will retain these settings. Note: the HD PVR 2 must be powered on for the pass through to operate.
My video recordings look pixelated with fast motion. What can I do?
Increasing the recording bitrate will eliminate motion artifacts in your recordings. Here is how to do this:
In Showbiz Capture module, click the Format setting button. Then click the Video Encode tab. Under Bitrate, set to 10000000 (this is 10 Mbits/sec bitrate). Under Bitrate peak, set to 20,000,000 (this is 20 million bits/second). Under Bitrate mode, set to Variable.You can experiment with other settings, but in our experience, these are good for uploading to YouTube.
What resolutions and bit rates are supported using the HD PVR 2?
- Video record resolutions are 1080p30, 720p60, 540p60, 480p60 and a number of downscale variants of these formats.
- You can record at datarates from 1Mbs to 13.5Mbs, constant and Variable Bit Rate
What file formats are created by recording with the HD PVR 2?
The default formats you can record in are: .TS (transport stream for AVCHD), .M2TS (for PS3), and .MP4 (for most video editors and for playback on an Xbox 360).
How much disk space will it take up when recording?
Approximately 2 GB per hour at 5Mb/s setting.
Approximately 4 GB per hour at 9Mb/s setting.
Approximately 6 GB per hour at 13.5 Mb/s setting.Can I use HD PVR 2 independently from a PC?
No, the HD PVR 2 requires a PC to operate. But once you have connected your PC to HD PVR 2 and have gotten Showbiz running, you can disconnect the USB cable to your PC and the passthrough will continue to run as long as HD PVR 2 still has power.
Can I use a longer USB cable with my HD PVR 2?
It is not recommended to use a different USB cable other than the cable provided with the device.
Can I burn a Blu-ray disc with my HD PVR 2?
You can burn Blu-ray compatible discs but a disc burner is not supplied with HD PVR 2.
What are the specifications for the power adapter that is included with the HD PVR 2?
The power adapter is 6V 1.6 amps.
Hauppauge Capture hangs during the installation.
Check for the presence of "Constant Guard" from Exfinity and uninstall if present then re run the installation for Hauppauge Capture. Once installed you can reinstall Constant Guard
